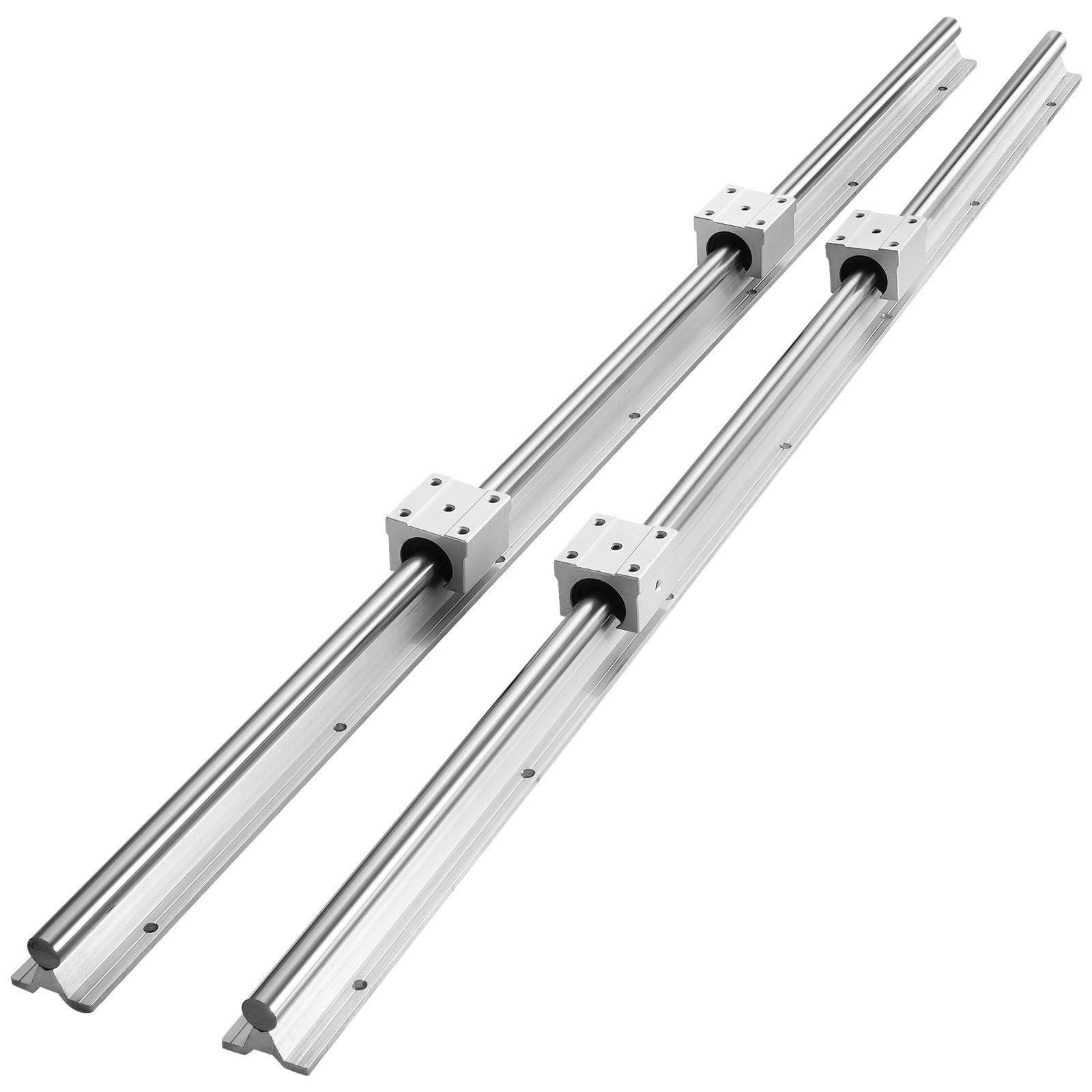

Linear Guide Rail Set, SBR16 800mm, 2 PCS 31.5 in/800 mm SBR16 Guide Rails and 4 PCS SBR16UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines

Linear Guide Rail Set, SBR16 800mm, 2 PCS 31.5 in/800 mm SBR16 Guide Rails and 4 PCS SBR16UU Slide Blocks, Linear Rails and Bearings Kit for Automated Machines DIY Project CNC Router Machines
Handle Pressure with Ease
Smooth Sliding without Stutter
More Accurate Than Ever

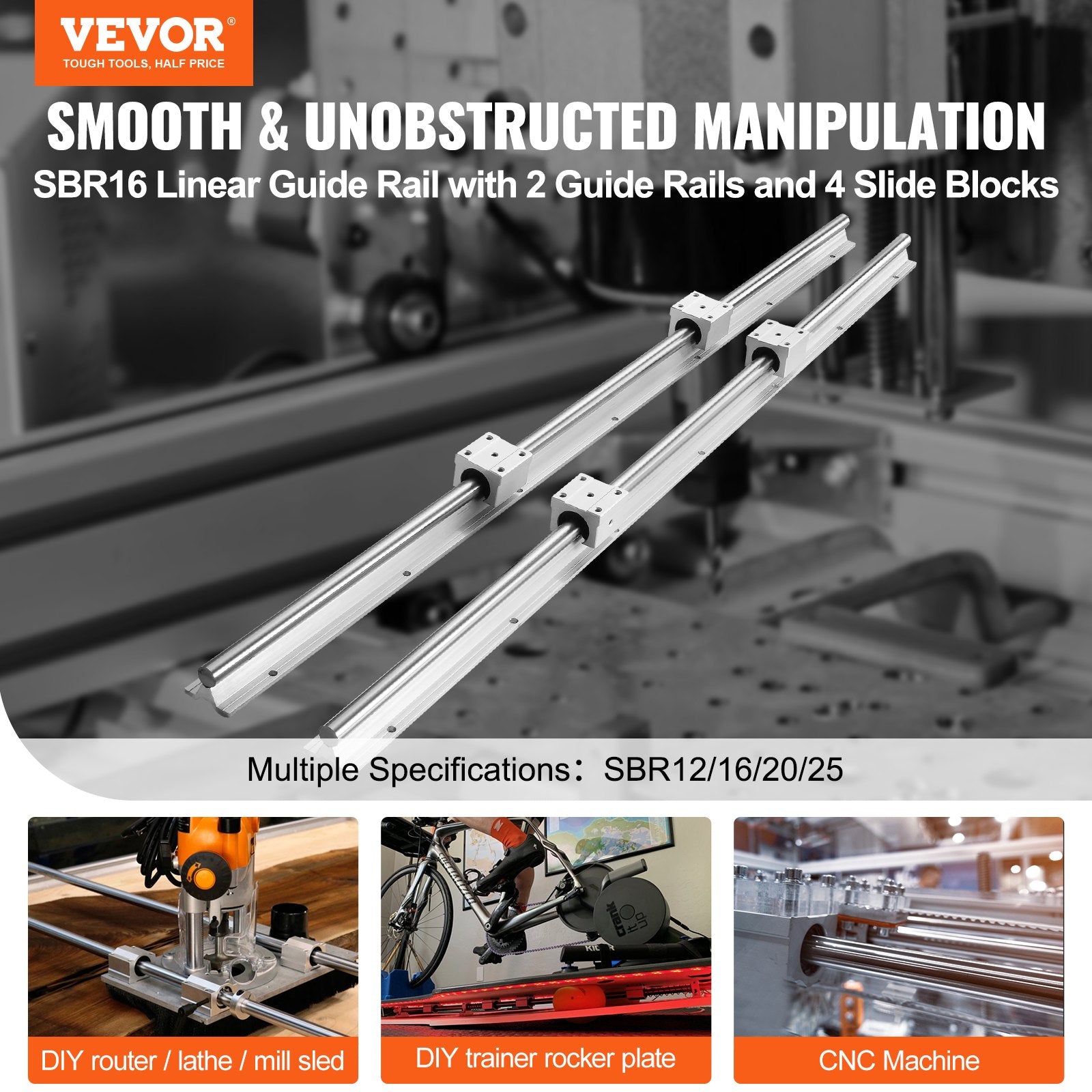

Broad Usage Scenarios
Strong Corrosion Resistance
Installation Made Easy

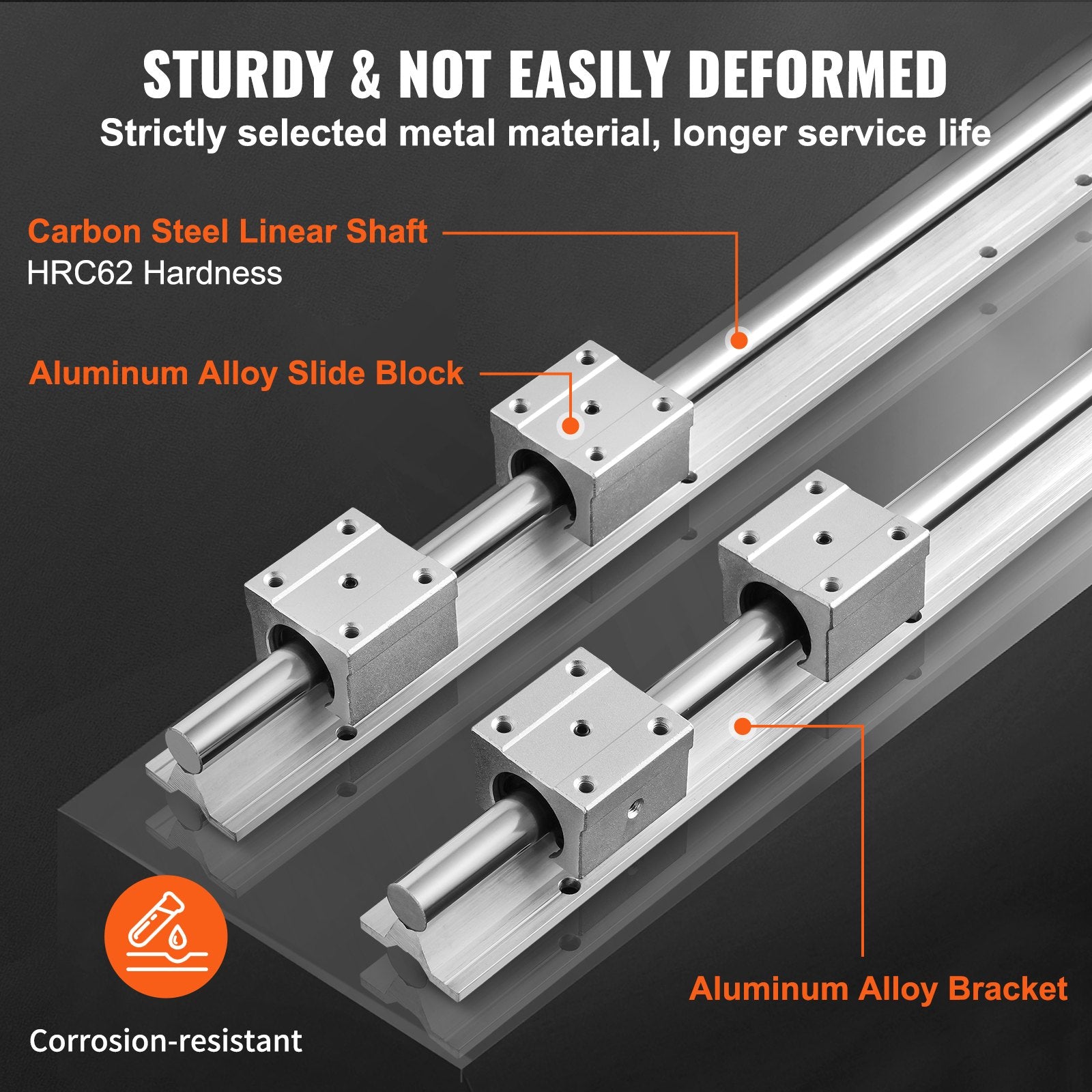

Shaft Diameter: ¦µ16 mm,Material: High Carbon Steel Aluminum,Model Number: SBR16-C 800L,Product Dimensions(L x W x H): 31.5 x 3.1 x 1.3 in/800 x 80 x 32.2 mm,Package Size(L x W x H): 34.3 x 5.1 x 3.1 in/870 x 130 x 80 mm,Dynamic Load (per block): 774 N,Mounting Hole Distance B: 1.2 in/30 mm,Mounting Hole Distance A: 1.3 in/32 mm,Slide Block Size(L x W x H): 1.8 x 1.8 x 1.3 in/45 x 45 x 33 mm,Static Load (per block): 1180 N,Slide Block Model: SBR16UU,Net Weight: 8.6 lbs/3.9 kg,Guide Rail Length: 31.5 in/800 mm
